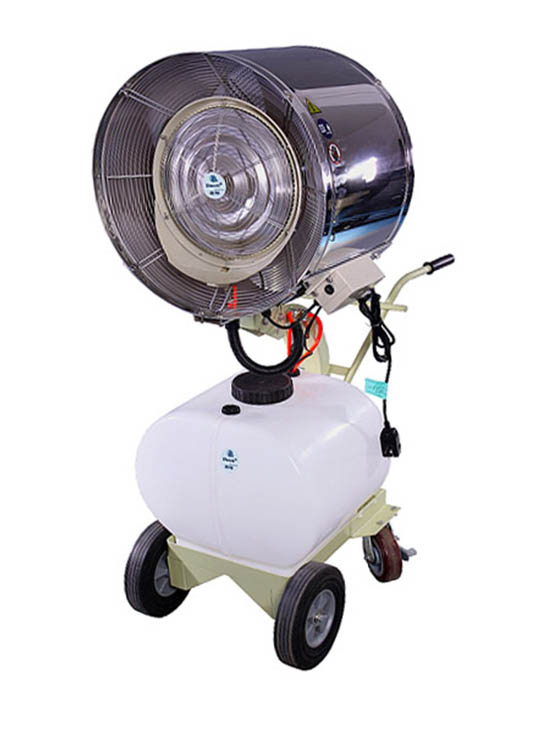

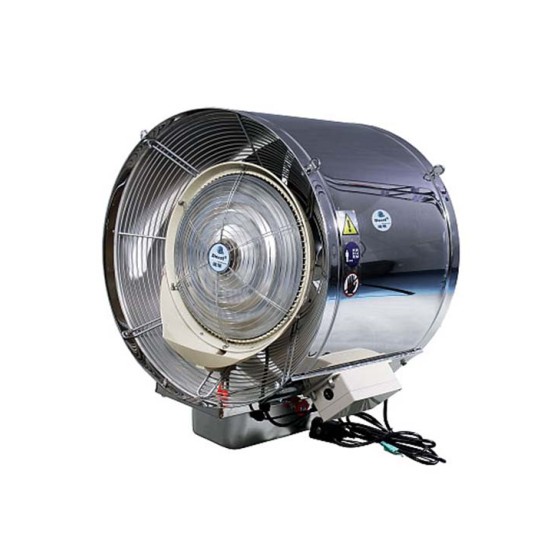

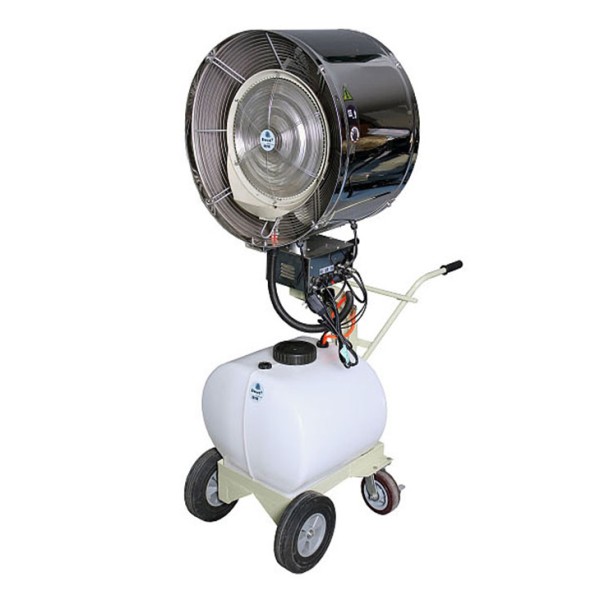

Global summer hot-selling large area spray humidification cooling dust removal refrigeration atomization stainless steel fan

Principle of operation:

Taking the latest direct centrifugal atomization technology, through wet mist of the spray spread to the air rapidly, the evaporation takes away the heat from the air quickly, thus reduce the environment temperature, within the range of the spraying area,could be cooler  6 ~ 8 ° C.

 Functions:

Cooling, humidity, dedusting, refrigeration, sterilization, epidemic prevention, antistatic and more.

 Applications:

Farms, greenhouses,factories, restaurants,mushroom houses, plant ecology garden,park, scenics, streets, playground, stadium,etc. The tank can be put air freshener, deodorizer, disinfector and more to get cleaner.

 New great points:

1. Product power consumption 750W

2. Air volume energy efficiency increased by 10%

3. Complete set of stainless steel air duct, surface anti-corrosion treatment

4. National standard leakage plug switch, use safety

5. No nozzle, separate design for fogging and blowing

6. The fog particle size is 8 ~ 12um

7. Non clogging structure design, exclusive direct atomization ppat Technology

8. High efficiency silent alloy large blade blade, noise is only 55 dB

  The noise of market products is 85 dB

9. Automatic water filling, automatic water tank level limit,ABS large capacity water tank 60L

10. Water tank automatic water circulation, no drainage, more water-saving

11. Corrosion resistant alloy wind cover

12. National standard all copper motor, life 8 years design

13. Shaking device (optional): stainless steel anti-corrosion head housing

A. Shake the head to drive the stepping motor and combine the tempered gear

B. Shaking angle 90 ° as standard

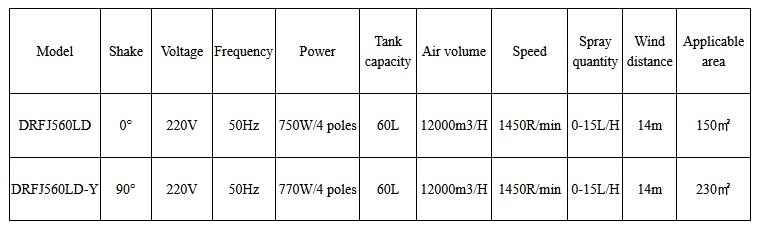

Technical parameter:
